  • Glass Longitudinal Cutting Machine There is a screw driven by servo motor and five cutting tools on either side of the bridge of the glass longitudinal cutting machine. While the cutters on one side are cutting, the cutters on the other side will conduct tracking based on signals from the control systems. The cutters on one side act as hot backup for those on the other side.
  • Cross Snapping Device The cross snapping device uses a Φ150 rubber roller as the main roller for snapping, with the max. stroke of 50mm. The following roller is driven by an air cylinder. In case of producing thin glass, adjust the screw handle to lift the main snapping roller a little higher than the upper surface of the roller table.
  • Accelerating Separation Roller Also, the accelerating separation roller is capable of grouping and delivering the glass panes that are cut into measured sizes and arranged with a certain distance between them. This allows sufficient time for the subsequent procedure in thin glass or short plate production.
  • Glass Severing Machine and Roller The snapping roller is equipped with a glass severing machine for double snapping. The roller offers automatic speed control within 150-1800 m/h. The edge-snapping wheels conduct tracking of the glass movement automatically or manually. The width of roller table can be adjusted automatically according to the glass width.
  • Glass Conveying Roller Our glass conveying roller is continuously updated and optimized over the years, offering bevel gearbox drive, chain drive, and other types. In order to meet different requirements for producing glass of all thicknesses and types, the roller can be designed with three-support, four-support, bilateral transmission construction, or others.
  • Longitudinal Snapping and Separation Device The longitudinal snapping and separation device separates the glass ribbon longitudinally into several ribbons, which facilitate cutting them into glass panes of certain sizes.
  • Glass Dropping Device The glass dropping device is composed of a dropping roller, receiving roller and crusher. It includes emergency dropping, main line roller dropping, and dropping for snapping. The sizes of the crushed pieces of glass do not exceed 50mm×50mm.
  • Glass Distribution Machine The glass distribution machine is suitable for glass with thickness of 2-19 mm. It can not only distribute glass plates continuously in one direction, but also distribute alternately on the left and right side. The distribution system makes it possible for delivering through multi channels and stacking at multi exits.
  • Glass Stacker The glass stacker is a kind of equipment which utilizes a vacuum device to vertically grip the glass plates. It consists of an angle turning device, glass distribution machine, alignment apparatus, roller for glass gripping, glass stacking machine and piling car as well as vacuum generator.
  • Float Glass Packaging The float glass packaging device works on the principle of static electricity. It sprays fine powder of mild acid organic materials onto the glass surface evenly, which forms a kind of padding between glass plates. The float glass packaging not only can be used as a substitute for wrapper, but also protect the glass from going moldy.

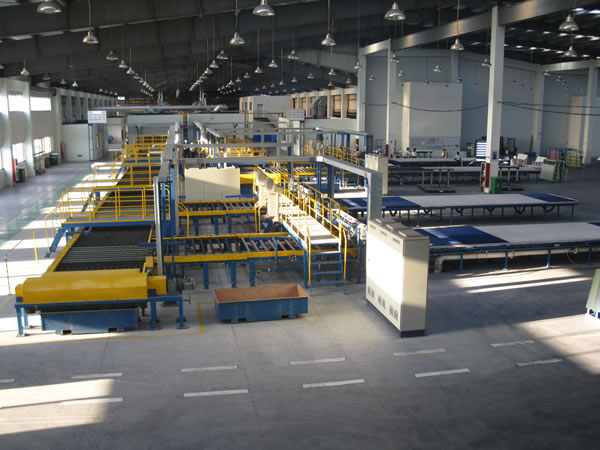

Cold End Equipment for Float Glass Production Line

Cold End Equipment for Float Glass Production Line

Yuntong is a China-based manufacturer and supplier of cold end equipment for float glass production line. Our products include forced convection heating flat glass tempering furnace, cross bending glass tempering furnace, laminated glass processing equipment, and glass washing machine, among others.
