Glass Stacker

Glass Stacker

Description

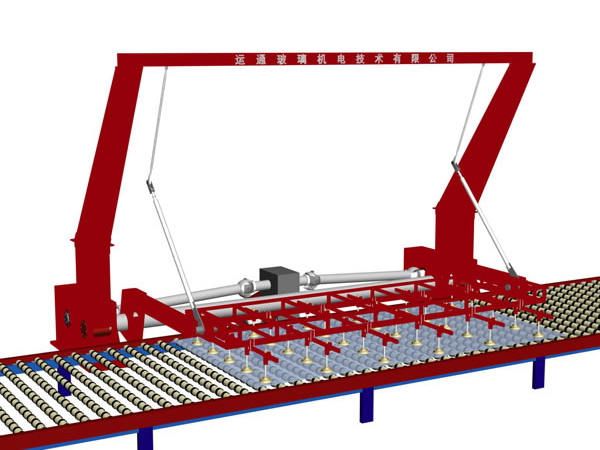

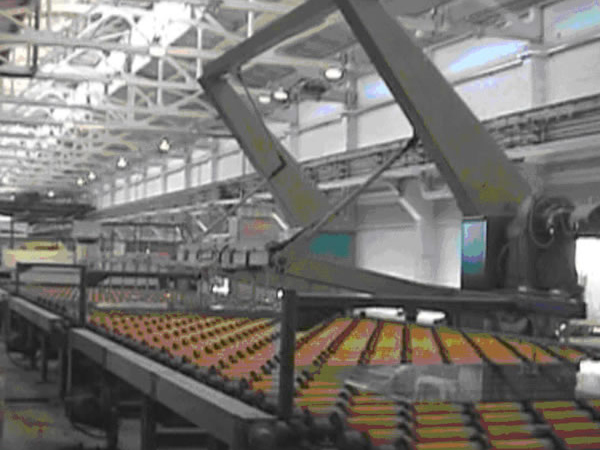

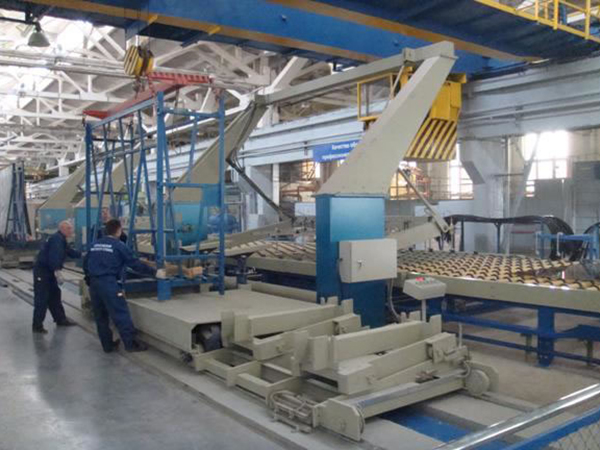

The glass stacker is a kind of equipment which utilizes a vacuum device to vertically grip the glass plates. It consists of an angle turning device, glass distribution machine, alignment apparatus, roller for glass gripping, glass stacking machine and piling car as well as vacuum generator.

Use
The glass stacker is used to automatically stack the glass plates, which facilitates packaging.

Technical Parameters

Stacking width 3660-6000mm
Stacking height 2440-3660mm
Glass thickness 8mm~19 mm
Overall dimensions 8500 (L)×7000 (W)×5500(H)
Stacking period 30s
Stacking precision ±4mm
Stacking angle 5°~6°

Note: We can produce jumbo, middle, and small glass sheet stacker.

Yuntong is a professional glass stacker manufacturer in China. We offer various types of products such as forced convection heating flat glass tempering furnace, energy-saving glass tempering furnace, horizontal glass washing machine, and glass longitudinal cutting machine.

Terms of trade
1. Minimum order quantity (MOQ): one piece or complete plant
2. Delivery time: 3-6 months (except float glass production line)
3. Port of loading: port of Tianjin (Xingang)
4. Terms of payment: advance payment (30% TT) + payment before shipment (60% LC or TT) + the balance of payment (10% TT or LC) after final acceptance.

Feedback Form
Other Products

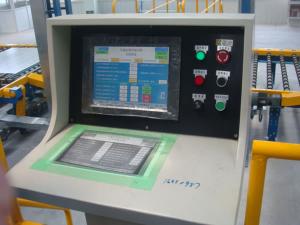

  • Automatic Control SystemThe automatic control system includes ActionScript (AS) and Operator Station (OS). All control parameters and non-control parameters are entered into the computer for data ...
